upto 3.2 CBM
Process Function The Electro Hydraulic Orange Peel Grab is engineered for the efficient handling of bulk, irregular, and large-sized scrap materials. Designed with high clamping force, it ensures secure and swift loading or unloading operations at ports, recycling plants, and scrapyards. This grab is powered through an integrated hydraulic system, eliminating the need for external […]
Process Function

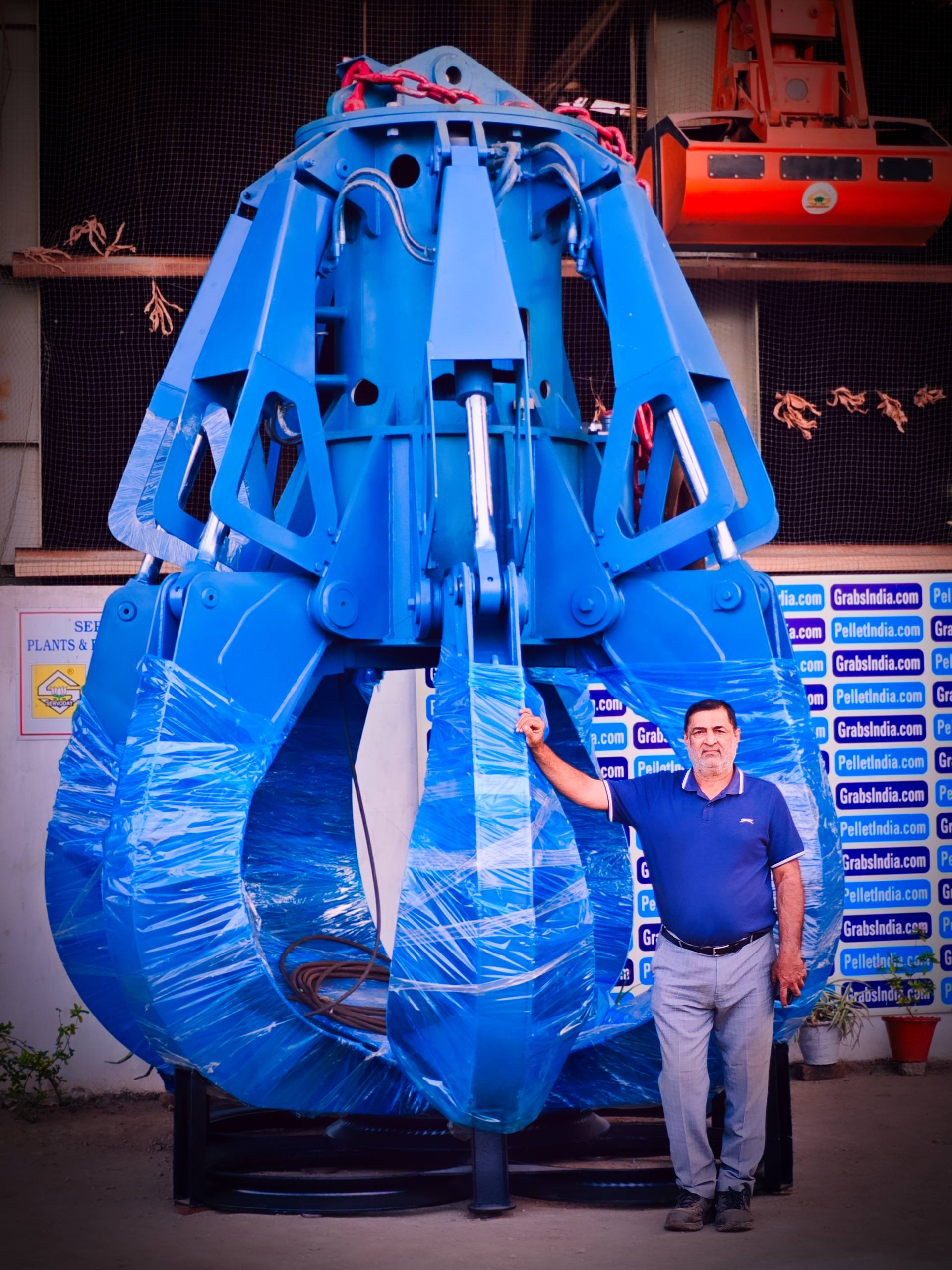

The Electro Hydraulic Orange Peel Grab is engineered for the efficient handling of bulk, irregular, and large-sized scrap materials. Designed with high clamping force, it ensures secure and swift loading or unloading operations at ports, recycling plants, and scrapyards.
This grab is powered through an integrated hydraulic system, eliminating the need for external hydraulic lines. With multiple tines and robust construction, it provides excellent penetration into scrap heaps and optimal material handling in harsh industrial environments.
Technical Features
| Feature | Specification |
| Grab Type | Electro Hydraulic Orange Peel Grab |
| Tine Configuration | 4-Tine / 5-Tine / 6-Tine Options |
| Material Construction | High-strength steel (HARDOX / FORA / SUMIHARD) |
| Hydraulic System | Integrated Electro-Hydraulic System |
| Power Supply | 400-440V, 3-Phase, 50Hz / Customizable |
| Grab Capacity | Ranges from 0.5 m³ to 3 m³ |
| Operating Pressure | Up to 250 Bar |
| Mounting | Hook-on or Lug-mounted to Crane |
| Surface Treatment | Rust-resistant paint / Epoxy coating |
Application
🚢 Port Cargo Handling
🏭 Steel & Scrap Yards
♻️ Recycling Plants
🔧 Foundries & Metal Plants
🛢️ Waste Management
🚧 Demolition Debris Loading
Process Raw Materials
The Orange Peel Grab is suitable for handling a wide range of bulky and irregular materials such as:
📞 Contact Us for Bulk Port Handling Solutions
📍 Servoday Plants & Equipments Limited
📞 +91 9427210483 | +91 9427210484
📧 [email protected]
🌐 www.GrabsIndia.com
👤 Contact Person: Sanjay Masuria
📲 WhatsApp: +91 9427210483
Strength, Precision, Reliability – Elevate Your Port Operations
genuinely serving since 1969. 🚀🔥
